GASparkle 61

“This hotel bar is full of people...”

Trademarks: Clean, very articulated tone. Scooped spectrum. Sharp attack.

Styles: 60's Rock, blues, rock’n'roll, reggae, Ska, country

Output: Low

Retail price: 100 Euros (without VAT) per pickup

Contact us for more info

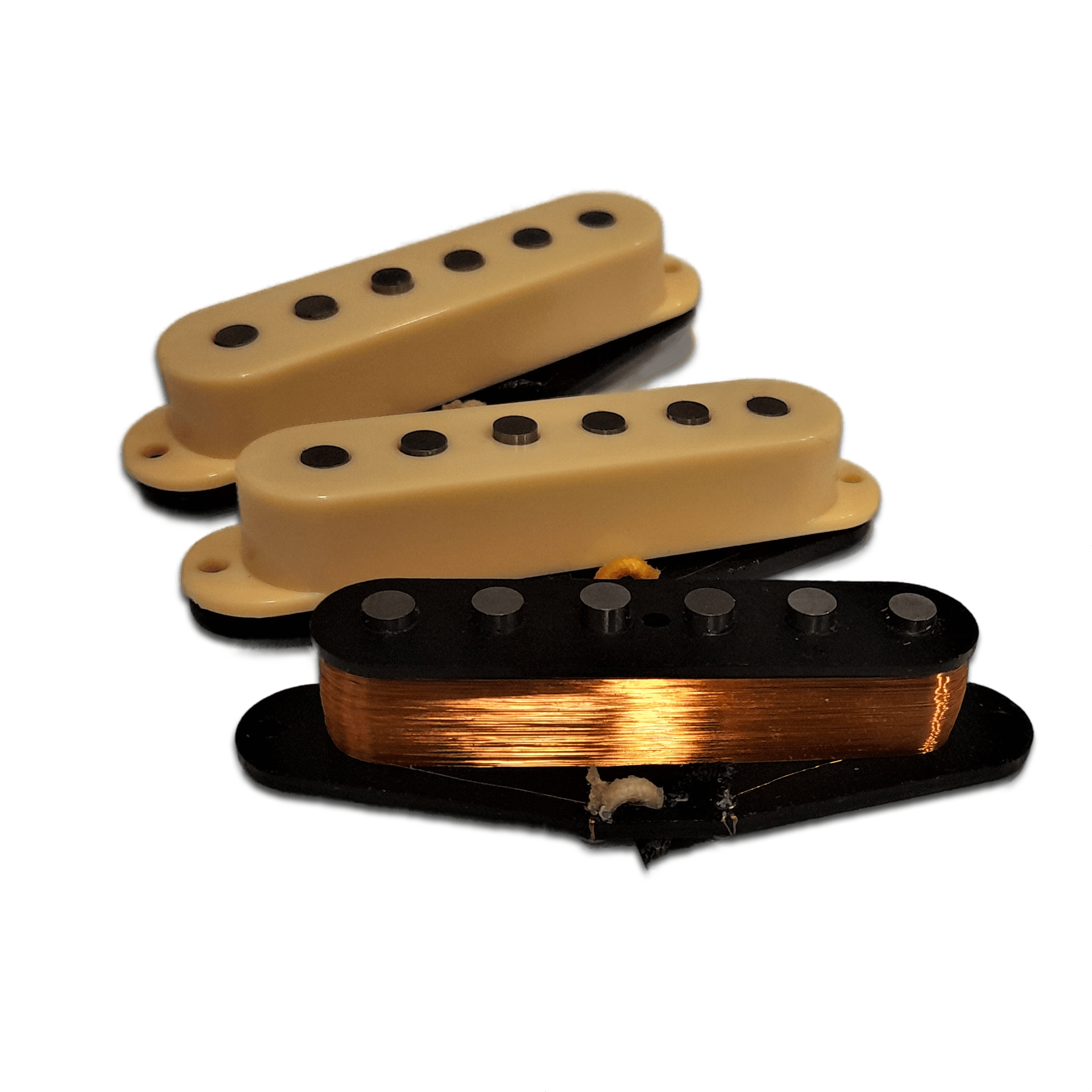

This is the pickup for the old school rock and bluesy sounds of the early 60's. It is clean, spanky, and aggressive, with highly dynamic behavior on crunchy and overdriven sounds. It features fully magnetized, wide flat top rods with low output coils, a proper combination for that nasty blues rock tone. On middle and bridge positions, GASparkle 61 is pure Rory's territory - for sure!
For all positions. Also available as a matched set with a RW/RP mid pickup.

Recommended Combinations*:
1. Combine GASparkle 61 (middle position) with GASlite 59 (neck position) and GASlite 63 (bridge position) on a typical SSS Strat® style guitar and you’ll get a highly versatile Strat® guitar for blues and classic rock
2. Combine GASparkle 61 (middle position) with GASlite 59 (neck position) and PAFoid M (bridge position) on a SSH style guitar and you’ll get a typical old-school sounding, low-medium output SSH set
3. Combine GASparkle 61 (middle position) with GASparkle 71 (neck position) and GAS and Them (bridge position) on a typical SSS Strat® style guitar and you’ll get the set for the post '73 DG tone, mainly the "Animals" tone
4. Combine GASparkle 61 (middle position) with PAFoid N Plus (neck position) and PAFoid M (bridge position) on a HSH style guitar and you’ll get our set with the lowest output

*Important Note: The final tonal result will be highly dependent on the user's guitar

Neck R_dc range	5,7 kOhms
Neck Resonance frequency	9,4 kHz
Middle R_dc range	5,9 kOhms
Middle Resonance frequency	9,2 kHz
Bridge R_dc range	6,3 kOhms
Bridge Resonance frequency	8,5 kHz
Rod magnet alloy	A5
Rod diameter	0,195"
Rod top	Flat
Winding wire (AWG, Coating)	42 Heavy PVA
Hookup wire	AWG 22 Cloth braided

Yannis (GAS Pickups) demoes the GASparkle 61 set

Alberto Barrero (Beautiful Gear Demos) demoes the GASparkle 61 set
Introduction

For the proper installation and wiring of your GAS Pickups, we strongly recommend letting a professional luthier or electrician perform this job in order for the pickups to be installed correctly and with no damage, which would harm the pickup’s functionality and warranty.

Delivery

All GAS S Singles are delivered with plastic covers (you may choose between white, cream, and black, or a combination of them, in case that you order more than one pickup), proper height adjustment screws (6-32 x 5/8'' pan head or oval head), and springs (or rubber tubes).

Wiring

GAS S Singles come with two cloth hookup wires, a black and a white one. In the case of a set, if the middle pickup is RW/RP there will be a yellow wire instead of the white one. Usually the black wires will be grounded, while the white and yellow ones will go hot. However, if you install a GAS S Single along with pickups from other brands on the same guitar and face out-of-phase problems when operating with them, just swap the black with the white (or yellow) wires. For the desired wiring diagram of your guitar, please refer to the dozens of specialized websites with such diagrams, depending on the desired configuration.

Pickup height or string distance

There is a lot of conversation on this item. The fact is, there is no absolute guidance for a generic pickup height adjustment! The distance of a pickup to the strings is dependent on countless factors, such as pickup output, pickup position, string gauge, the guitar itself, the guitarist’s overall playing technique (string hitting, etc.), and the musical styles that are about to be covered. In the case of a pickup set, usually the pickup height is adjusted so all pickups show a similar output level, but this is not a rule. Our recommendation: The desired pickup height adjustment is a procedure that may last longer than you think; just start with a generic distance of 2mm on the e strings and repeat the procedure (adjust, play, listen, re-adjust) until you are satisfied. S Singles have a very strong magnetic field towards the strings, but due to our custom staggering, you may put them closer to the strings than other singles with traditional staggering, so try this out. Don’t forget to adjust in small steps (e.g., one full turn of the height adjustment screw each time) in order to easily come back one step if you are not happy with the new situation. And, trust us, if you just repeat the whole thing a couple of weeks later, you will probably find yourself re-adjusting the height again. It is something that each musician should go through by himself.

Dimensions

GAS S Singles are direct replacements for Strat® guitars and similar models.
The pickup’s dimensions (including a pickup cover) are as follows (sizes in mm):
- Almost all S Single models are available as a matched set. Can different models be mixed into a custom set?

  Any GAS S Single model can be combined with any other into a custom set, following the user’s needs.
- A year is used to identify the S Single models (e.g., 54, 59, 61, 63, etc.). Do the relevant models actually correspond to the original models of those years?

  GASparkles go for the cleanest sparkling tone with low output and sharper attack, whereas GASlites are more for a medium-higher output and a more mellow tone. However, there are way more details in each model that result in different tone shades and dynamics, so we recommend referring to each model’s technical specs for more information.
- What’s the difference between the GASparkle and GASlite models?

  GASparkles go for the cleanest sparkling tone with low output and sharper attack, whereas GASlites are more for a medium-higher output and a more mellow tone. However, there are way more details in each model that result in different tone shades and dyna...
- A custom staggering is mentioned. What does this mean?

  Old Strat® single coil pickups from the 50’s and 60’s had a specific staggering pattern (different distance between each pole and its corresponding string), following the string sets of those eras. The g string was then wound, and it was a very weak one, the b string was louder. Therefore, the g pole was placed high, and the b pole was placed low. With contemporary string gauge sets, the g string is almost always plain. It is the loudest string in the set, while the D string is now the weakest. Therefore, in order to avoid unbalanced signal output between the strings, we designed our S Singles with a custom staggering pattern, which allows for better balance and more proper pickup placement.
- Some S singles are available with flat pole rods, others with beveled top rods. What’s the difference?

  When comparing poles from the exact same alloy, flat pole rods allow a faster, sharper attack and the highest dynamic range, due to the more rapid change of the magnetic field at their edges. On the contrary, beveled top rods lead to a more smooth attack, are easier to play and offer a naturally, slightly compressed sound that results in more sustain. Watch the video below (preferably in a good audio system) and listen to these differences.
